Product Overview

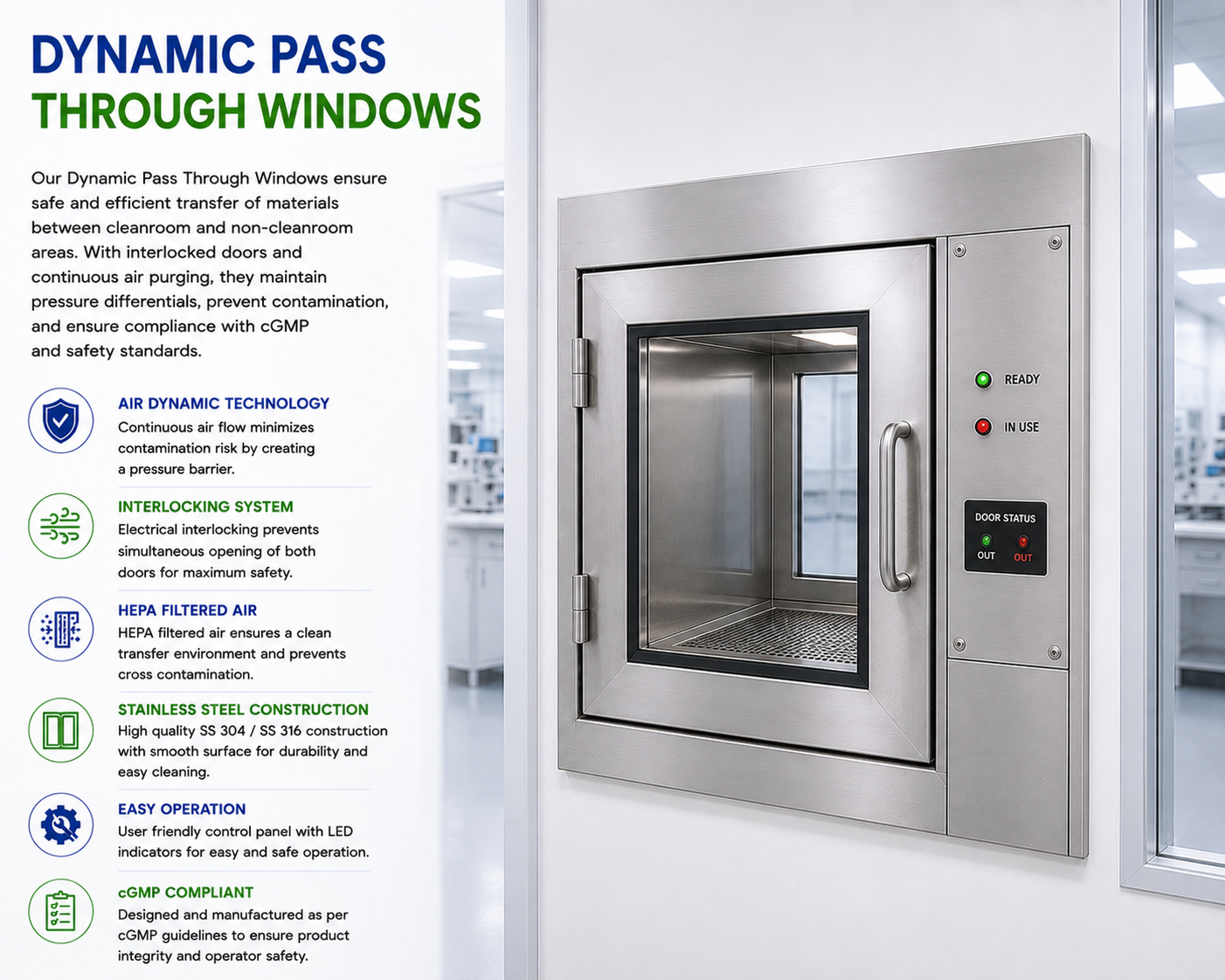

Our Dynamic Pass Through Window (Dynamic Pass Box) is a high-performance contamination control system designed to safely transfer materials between areas of different cleanliness levels without compromising the cleanroom environment. Equipped with a HEPA-filtered airflow system and an interlocking door mechanism, it effectively removes airborne particles from transferred materials while minimizing the risk of cross-contamination.
Manufactured to meet cGMP, ISO 14644, and FDA guidelines, our Dynamic Pass Through Windows are widely used in pharmaceutical industries, biotechnology laboratories, hospitals, food processing facilities, and cleanroom manufacturing environments.
Key Features
- HEPA H14 filter with 99.995% efficiency at 0.3 microns
- Integrated motor blower unit for continuous airflow
- Dynamic air circulation for particle removal
- Electromagnetic or mechanical door interlocking system
- UV germicidal lamp for sterilization (optional)
- LED lighting for enhanced visibility
- SS304 construction with optional SS316 stainless steel
- Smooth, easy-to-clean hygienic design
- Low noise and energy-efficient operation
- Digital control panel with timer (optional)
- Tempered glass viewing windows
- Custom sizes available
- Designed in accordance with cGMP and ISO cleanroom standards
Technical Specifications
| Specification | Details |
| Product Name | Dynamic Pass Through Window |
| Type | Dynamic Pass Box |
| Filtration | HEPA H14 Filter |
| HEPA Efficiency | 99.995% @ 0.3 Micron |
| Pre Filter | G4 Washable Filter |
| Airflow | Vertical / Horizontal Recirculating Airflow |
| Body Material | SS304 Stainless Steel (Optional SS316) |
| Door Type | Interlocked Swing Doors |
| Viewing Panel | Toughened Glass |
| Lighting | LED Light |
| UV Lamp | Optional |
| Noise Level | ≤65 dB |
| Power Supply | 220–240V, 50Hz |
| Control Panel | Digital Controller |
| Interlocking System | Mechanical / Electromagnetic |
| Compliance | cGMP, ISO 14644, FDA Guidelines |
| Available Sizes | Standard & Custom Sizes |
Applications
Our Dynamic Pass Through Windows are widely used in:
- Pharmaceutical Manufacturing
- Biotechnology Facilities
- Cleanroom Manufacturing
- Hospitals & Healthcare Facilities
- Medical Device Manufacturing
- Food & Beverage Processing
- Electronics & Semiconductor Industries
- Research & Development Laboratories
- Quality Control Laboratories
Benefits
- Prevents cross-contamination during material transfer.
- Maintains cleanroom integrity and air cleanliness.
- Reduces the movement of personnel between clean areas.
- Improves operational efficiency.
- Easy to clean and maintain.
- Durable stainless steel construction.
- Energy-efficient and reliable performance.
- Complies with international cleanroom and pharmaceutical standards.
Optional Features
- UV Sterilization Lamp
- PLC with Touch Screen HMI
- Digital Timer
- Magnehelic Pressure Gauge
- Door Status Indicator
- Audible Alarm System
- SS316 Stainless Steel Construction
- Customized Dimensions
- Validation Documentation (IQ, OQ & PQ)
Why Choose Our Dynamic Pass Through the Window?
Our Dynamic Pass Through Windows are engineered to provide safe, efficient, and contamination-free material transfer in controlled environments. Featuring advanced HEPA filtration, a secure interlocking door system, and durable stainless steel construction, they ensure maximum cleanliness, operator convenience, and compliance with international cleanroom standards. Ideal for pharmaceutical, biotechnology, healthcare, and industrial applications, our pass boxes deliver reliable performance with minimal maintenance.
