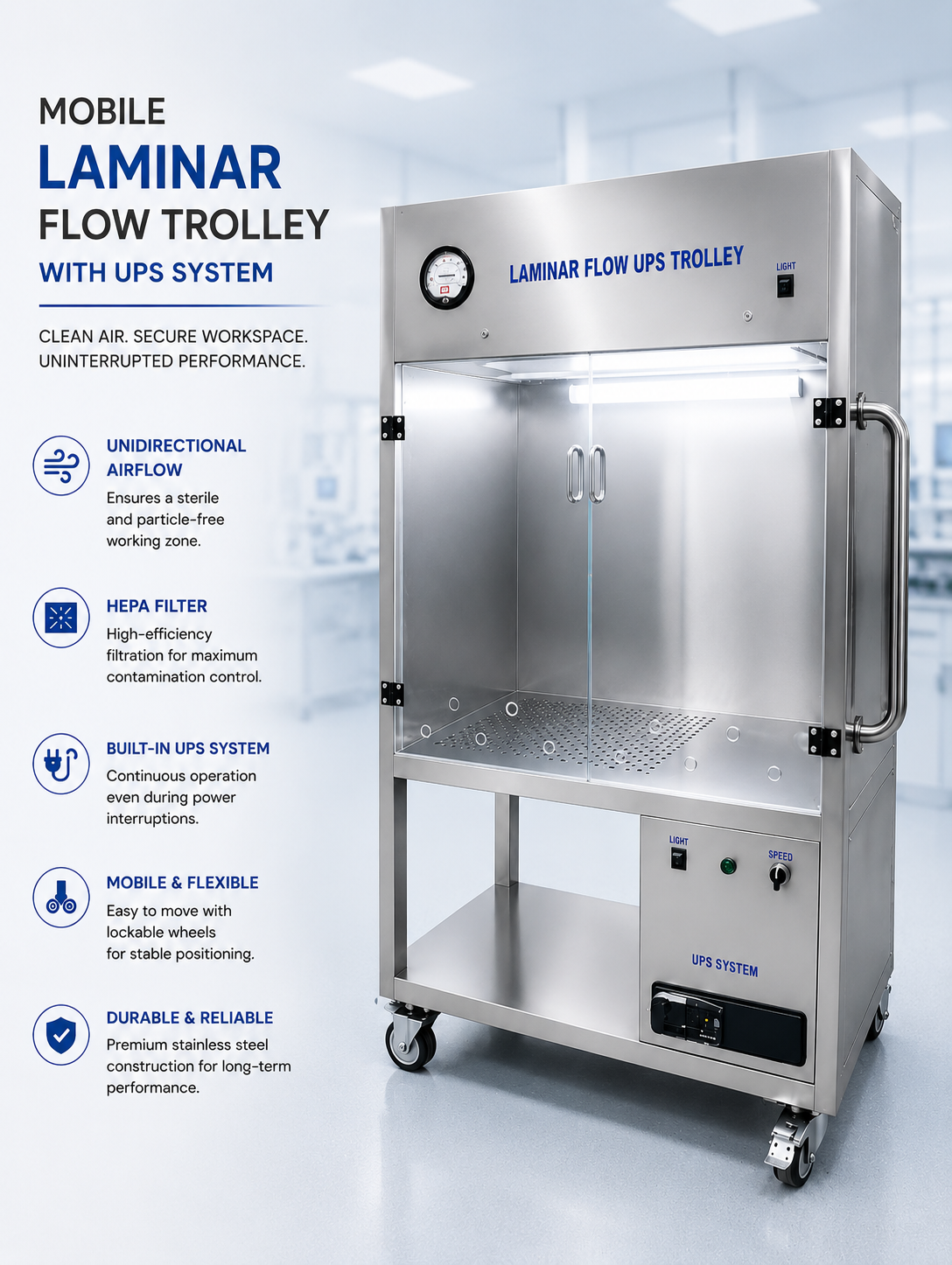

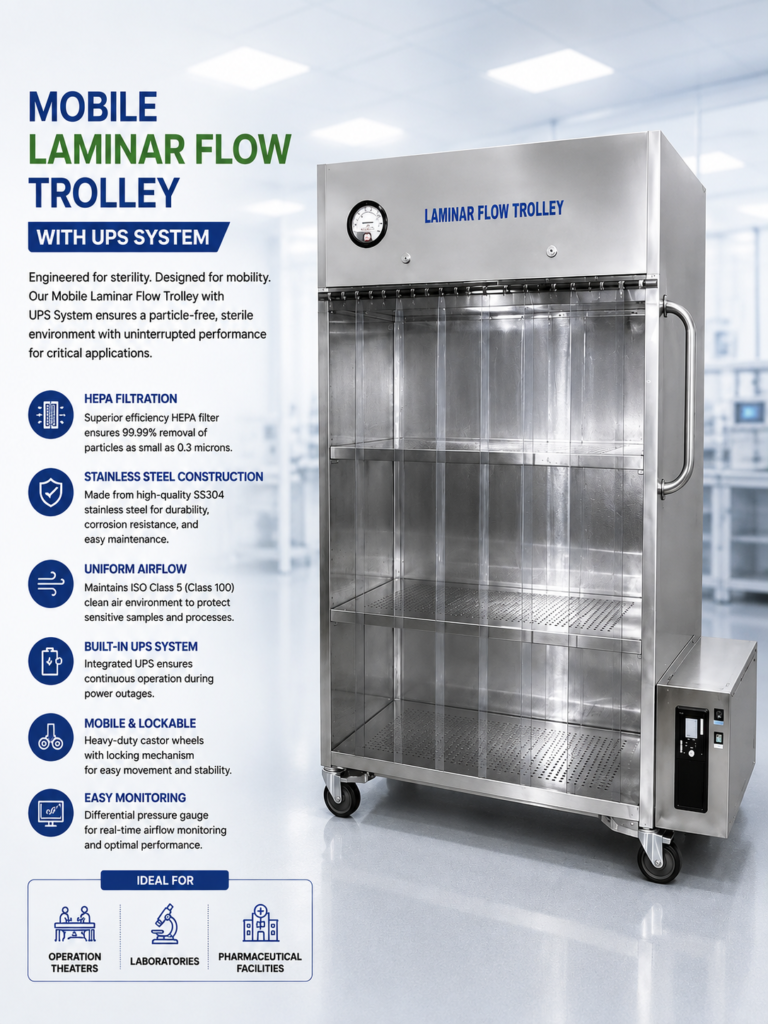

The Mobile Laminar Flow Trolley with UPS System is designed to provide a clean, controlled, and mobile working environment for sterile handling, transfer, and processing of pharmaceutical and medical materials. The integrated UPS backup system ensures continued operation of critical airflow and filtration functions during short-duration power interruptions.
Technical Specifications
| Specification | Details |
|---|---|
| Construction Material | Stainless Steel 304 Grade (SS304) |
| External Finish | Smooth, hygienic, corrosion-resistant finish |
| Internal Chamber | SS304 stainless-steel construction |
| Airflow Type | Vertical unidirectional laminar airflow |
| Filtration | High-efficiency HEPA filter |
| HEPA Efficiency | Up to 99.99% at 0.3 µm* |
| Airflow Velocity | Typically 0.36–0.54 m/s, adjustable |
| Fan System | Energy-efficient, low-noise fan |
| Airflow Control | Variable-speed fan controller |
| Working Surface | Perforated SS304 stainless-steel worktop |
| Front Protection | Transparent PVC strip curtains / clear panels |
| Pressure Monitoring | Differential pressure gauge / manometer |
| Lighting | Integrated LED illumination |
| UPS System | Built-in rechargeable UPS backup system |
| UPS Function | Provides backup power to critical operating components during power interruption |
| UPS Monitoring | Battery/UPS status indicator and control panel |
| Mobility | Heavy-duty caster wheels |
| Caster Locking | Lockable wheels for stable positioning |
| Electrical Supply | 220–240 V, 50 Hz, single phase, or as required |
| Noise Level | Low-noise operation |
| Cleaning | Smooth and easy-to-clean hygienic surfaces |
| Customization | Dimensions, airflow capacity, UPS backup time, filtration and accessories can be customized |
*Actual HEPA efficiency and airflow performance should be confirmed according to the selected filter and validated operating conditions.
Key Features
- Integrated UPS Backup – Maintains critical system operation during temporary power interruptions.
- HEPA-Filtered Airflow – Provides a controlled, particle-reduced working environment.
- Uniform Laminar Airflow – Helps minimize contamination during sterile handling operations.
- SS304 Stainless-Steel Construction – Durable, corrosion-resistant, and easy to sanitize.
- Adjustable Airflow Control – Allows airflow to be regulated according to process requirements.
- Differential Pressure Monitoring – Enables convenient monitoring of filter loading and system performance.
- LED Illumination – Provides clear visibility throughout the working area.
- Mobile Design – Heavy-duty lockable casters allow easy movement and secure positioning.
- Transparent Strip Curtains – Help maintain the controlled environment while providing easy operator access.
- Ergonomic Control Panel – Provides convenient access to airflow, lighting, and UPS controls.
Typical Applications
Pharmaceutical Manufacturing | Sterile Product Handling | Operation Theaters | Cleanrooms | Material Transfer | Quality Control Laboratories | Research Laboratories | Medical & Healthcare Facilities
Optional Features
- Extended UPS backup capacity
- Digital airflow display
- Digital differential pressure monitoring
- Audible & visual alarms
- UV-C sterilization system
- Battery status monitoring
- Automatic airflow control
- Additional stainless-steel shelves
- Data monitoring and recording system
- Customized trolley dimensions and configurations
